Description
For connection of 100BASE-T1 automotive Ethernet devices and 10BASE-T1L industrial Ethernet devices a unshielded twistet pair (UTP) cable is required.

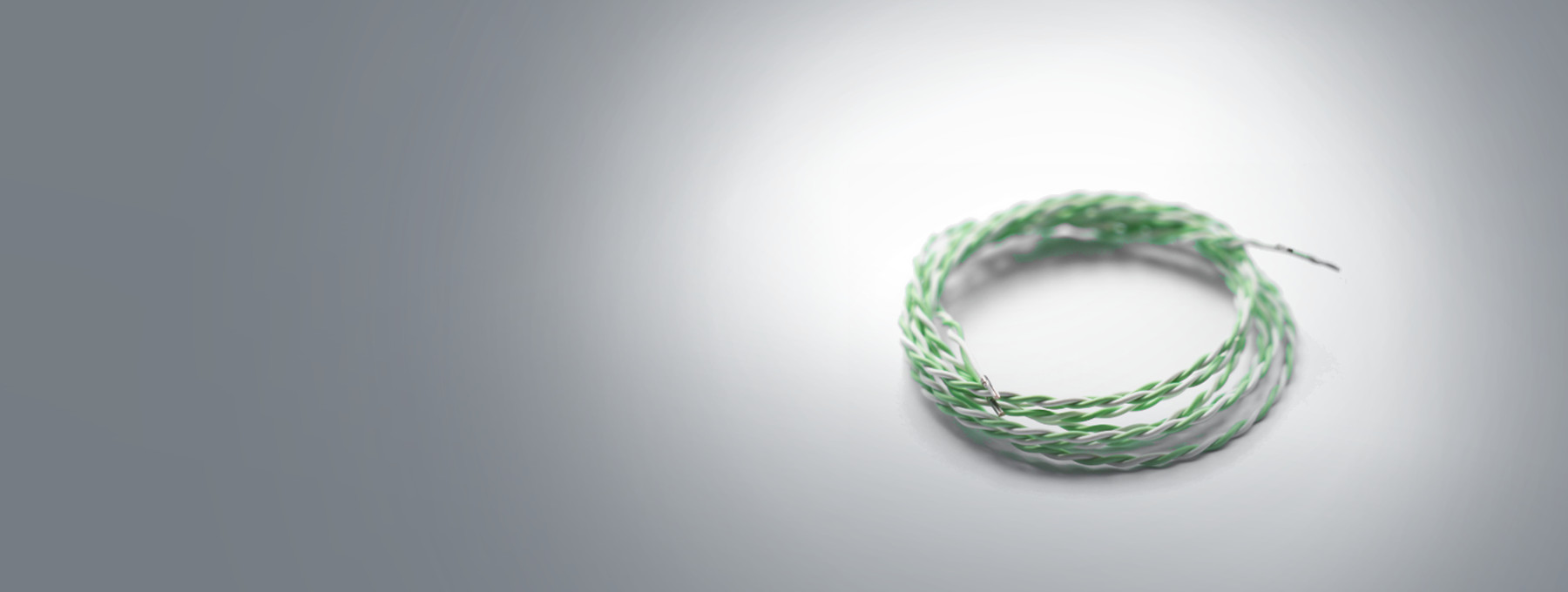

The FC900302 UTP Ethernet Cable represents such a cable.
The FC900302 UTP Ethernet Cable has a length of 2 m and is providing on both ends cable sleeves for seamless
connectivity to screw terminal blocks as provided on countless numbers of evaluation and
custom printed circuit boards.
Features
- Cable type: FLR9Y
- Cable length: 2 m
- Cable head: Cable end sleeves
- Core: 0,35 mm²
- Core arrangement: 2 cores twistet together (Length of lay 13 mm)
- Color: green & white
Technical Data
| Temperature range: |
-40°C to +105°C |
| Weight: |
nom. 8,5 kg/km |
| Conductor resistance: |
min. 48,22 mOhm/m
max. 55,50 mOhm/m |
| Mean impedance: |
100 Ohm +/- 10 Ohm (1 - 100 MHz) |
Ordering Information
| Order Number: |
FC900302 |
| Product Name: |
UTP Ethernet Cable (FLR9Y, length 2 m) |
| Deliverables: |
UTP Ethernet Cable incl. end sleeves |
| Price(excl. tax & shipping cost): |
Quantity: 1 .. 9 -> 4,60 € per cable
Quantity: 10 .. 24 -> 4,20 € per cable
Quantity: 25 .. 49 -> 3,85 € per cable
Quantity: 50+ -> Request a quote
For cable length other than 2 m please request a quote
|
Related Products
| Order Number: |
FC602 |
| Product Name: |
USB 100BASE-T1 Stick |
| Deliverables: |
USB 100BASE-T1 Stick incl. 2 m UTP Ethernet Cable and black sub-shell |
| Order Number: |
FC612 |
| Product Name: |
USB 100BASE-T1 Stick Raw |
| Deliverables: |
USB 100BASE-T1 Stick Raw incl. 2 m UTP Ethernet Cable and grey sub-shell |
| Order Number: |
FC621 |
| Product Name: |
USB 10BASE-T1L Stick |
| Deliverables: |
USB 10BASE-T1 Stick incl. 2 m UTP Ethernet Cable and dark blue sub-shell |
| Order Number: |
FC631 |
| Product Name: |
USB 10BASE-T1L Stick Raw |
| Deliverables: |
USB 10BASE-T1 Stick Raw incl. 2 m UTP Ethernet Cable and light blue sub-shell |
Contact us to clarify open questions or to order products.
For shopping go to the webshop.
